How to modernize a concrete block plant

A Technical Guide for Plan Managers

Modernizing a concrete block plant is not just buying new equipment. It is an industrial project that aligns capacity, quality, safety, and cash flow.

This article provides a pragmatic roadmap for plant managers and operations leaders who want to optimize concrete block production with controlled risk and measurable return.

Modernizing a Concrete Block Plant: Key Steps

You do not start with “the latest.” You start with what most constrains flow: diagnose with data, attack the bottleneck, and ensure a smooth ramp-up.

Prioritize what frees the most capacity and cuts scrap first. Leave cosmetic items for later and measure each step to optimize block production with minimal stoppage risk. Here is the roadmap.

Bottleneck-Driven Intervention Sequence

Start where it hurts most. Identify the current bottleneck and set the order of improvements with the technical action, owner, shutdown window, expected impact on OEE, and process dependencies.

At CBM Experts we usually see constraints in the vibropress/molds, curing, or palletizing. Close the loop with post-implementation verification: before/after OEE, scrap, effective hours, and safety.

Quarterly Goals and Risks

Set SMART objectives per quarter:

• Plant OEE, product scrap.

• kWh/pallet.

• Mold changeover time.

• Micro-stoppages.

Assign engineering and procurement milestones, and document risks with mitigations: critical spares in stock, contingency plans for unplanned stops, and safety protocols. Review variances monthly and adjust the plan.

Initial Diagnosis and KPIs to Optimize Concrete Block Production

To optimize production you need a real baseline: OEE by line, scrap by product family, kWh/pallet, mold changeover times, and micro-stoppages. Map your plant with numbers, not intuition. From here you will decide what to tackle first and how much each improvement will yield.

OEE, Scrap, MTBF/MTTR

Define the OEE of each line and the aggregate plant OEE. Record scrap by block family and by shift. Measure MTBF (Mean Time Between Failures) and MTTR (Mean Time To Repair) on vibropress, mixing, and palletizing. Set realistic quarterly targets and link incentives to achievement. Without a baseline there is no sustainable improvement.

Specific Consumption kWh/Pallet and Water

Define the OEE of each line and the aggregate plant OEE. Record scrap by block family and by shift. Measure MTBF and MTTR on vibropress, mixing, and palletizing.

Set realistic quarterly targets and link incentives to achievement. Without a baseline there is no sustainable improvement.

Mold Changeover Times and Micro-Stoppages

Calculate kWh/pallet by cost center: mixing, vibration, curing, and material handling. Identify variation by mix recipe and climate. Record water consumption and recirculation. The objective is to stabilize mix and curing to reduce energy per unit without sacrificing strength or surface finish.

Concrete Plant Audit

Auditing your concrete plant sets the baseline and orders priorities. Review mixing and dosing (moisture sensors and actual recipe), vibropress and molds (clearances, parallelism, changeover times), curing and palletizing (uniformity and damage), and internal flow (buffers and paths).

Mixing/Dosing and Moisture Control

Evaluate homogeneity and repeatability. Review mixer design, wear, and real-time moisture sensors per Hydronix 2024: methods for moisture control in mixing. Check gradation and admixture dosing. A stable mix reduces scrap, improves edges, and shortens effective curing.

Vibropress and Molds

Inspect mechanical condition, vibration, and lubrication. Analyze clearances, parallelism, and flatness.

Review molds:

• Materials.

• Treatments.

• Wear in critical areas.

Document cycles per mold, rejects due to scratches and dimensional deviation, plan quick changeovers, and maintain minimum stock of critical cavities.

Do you know what Kobra molds for blocks and pavers are? See our full guide.

Curing, Palletizing, and Internal Flow

Audit curing chambers: thermo-hygrometric control, uniformity across stacks, and profiles by product. In palletizing, verify edge integrity and stack stability. Analyze internal flow, buffers, and path crossings. Objective: taut flow with no waits, with enough automation to sustain line pace.

Safety and Control (PLC/SCADA)

Verify guarding, emergency stops, and LOTO procedures. Review PLC architecture and SCADA/MES coverage: critical variables, alarms, histories, and lot-level traceability. Ensure regulatory compliance and effective role-based training.

Technical Levers for Modernization

These are the levers that move results: vibropress retrofits and quick change, curing profiles and chambers, robotic palletizing and material handling, flow automation, and mix control. For each solution define scope, compatibility, shutdown window, and resources.

Vibropress Retrofits and Quick Change

Upgrade vibration systems, control, and drives. Standardize recipes and implement quick mold change with dedicated tooling. This increases repeatability, cuts idle time, and improves finish. Verify compatibility with existing molds and plan the shutdown window.

Curing Chambers and Profiles

Optimize curing profiles by product family and guide design with CMHA 2024: design and construction details for CMU to ensure tightness, air distribution, and thermo-hygrometric control. Improve heat recovery. Curing uniformity reduces variability, raises early strengths, and frees capacity by requiring fewer chamber hours.

Robotic Palletizing and Material Handling

Integrate robots with machine vision, suitable grippers, and stacking patterns that minimize damage. Adapt material handling with conveyors, accumulation tables, and diverters. Result: fewer breakages, better ergonomics, and greater stack stability for shipping.

Automating a Block Plant: From Palletizing to Internal Flow

Define scope: from palletizing/stretch-wrapping to buffers, shuttles, and AGVs if appropriate. List equipment and sensors, PLC/SCADA integration, and multi-brand compatibility.

Validate layout and robot zones for functional safety. Plan shutdown windows and quantify impact on OEE, damage, and kWh/pallet. Objective: automate the block plant with a clear ROI.

Digitization and Real-Time Control in Concrete Block Production

Digitize your plant to turn data into decisions. Move from local control to a connected factory with PLC+SCADA/MES: real-time KPIs (OEE, scrap, kWh/pallet), lot traceability, and useful alerts in block production.

SCADA/MES and Live OEE

Base the MES/SCADA architecture on ISA-95 (International Society of Automation). Publish live KPIs by line:

• OEE.

• Rate vs target.

• Scrap by cause.

• Alarms.

Enable lot traceability from aggregate to pallet. Configure useful, non-intrusive alerts and role-based dashboards for production, maintenance, and quality. Close the loop: data → decision → standard.

Predictive Maintenance

Implement monitoring of vibration, temperature, and effective hours on bearings, gearboxes, and vibrators. Predict failures, schedule short stops, and protect part quality. A basic predictive program with thresholds and rules already reduces MTTR and raises MTBF.

Activate time-based and condition-based inspection plans; see our block machine maintenance guide to standardize routines and spares.

Energy Efficiency and Sustainability in the Concrete Plant

Install variable-speed drives and efficient motors on vibration, ventilation, and pumping. Match speed profiles to the real cycle. This trims demand peaks and idle consumption and improves process control.

VSDs and IE3/IE4 Motors

Install VSDs and efficient motors on vibration, ventilation, and pumping in line with Regulation (EU) 2019/1781 for IE3/IE4 motors and drives. Match speed profiles to the real cycle. Reduce demand peaks and idle consumption and improve process control.

Heat Recovery in Curing

Recover heat from ovens/chambers and redistribute it with directed ventilation. Adjust setpoints by recipe and climate. Lower energy per pallet and better dimensional stability, with fewer cracks and less color variation.

Water and Fines Recycling

Close process-water loops, control solids, and reuse in non-critical steps. Reduce consumption, discharges, and treatment costs. Instrumentation and alarms prevent deviations that affect finish.

Concrete Plant Project: Phases, Timelines, and Risks

Plan the concrete plant project backwards: scope, phased schedule by modules, shutdown windows, and temporary layout. Ensure safety stock, critical spares, and SLAs; lock in safety (LOTO), permits, and FAT/SAT with go/no-go milestones. Map risks (lead times, civil works, weather) with contingencies to execute without stopping production.

Scope and Vendor Selection

Define technical and functional scope. Compare turnkey vs partial integration by modules. Evaluate references, service (SAT), spares, and interoperability commitment. Require FAT/SAT and role-based training.

See our guide on how to choose machinery for concrete blocks.

Construction Plan and Phasing Without Stopping Production

Schedule shutdown windows and alternative flow routes. Prepare stockpiles, protections, and site safety. Keep safety stock of finished goods and document contingencies for weather, transport, and lead times.

Commissioning and Ramp-Up

Adjust mix recipes, verify dimensions and reinforcement. Plan a weekly production ramp with scrap and OEE targets. Secure performance guarantees and after-sales service (SAT) support with defined response times.

Costs, ROI, and Financing

Model return and cash under three scenarios (conservative/base/ambitious). Quantify OEE, scrap, kWh/pallet, and hours; calculate payback, TCO, and sensitivity. Define CAPEX/OPEX and the vehicle (leasing, renting, buy-back) to fit cash flow, and tie the contract to KPIs and SLAs for service/spares to protect ROI.

ROI Levers: Capacity, Scrap, Energy, Labor

Quantify return from increased usable capacity, reduced scrap and rework, energy savings, and labor hours saved through automation. Include perceived quality (returns) and safety (accidents avoided).

Scenarios and Payback

Model three cases:

• Conservative.

• Base.

• Ambitious.

Vary OEE, scrap, and energy consumption. Calculate payback and sensitivity to construction delays and input prices. Document assumptions and the mitigation plan.

Leasing, Renting, and Buy-Back

Define each model and when to use it. Compare terms, payments, nominal interest rate (TIN) / annual percentage rate (APR), purchase option, and residual value. State what maintenance covers, warranties, tax and cash impact, TCO, requirements, and paperwork. Add contractual risks: penalties, spare-parts SLAs, and buy-back conditions.

Common Mistakes and How to Avoid Them

Model return and cash with three scenarios (conservative/base/ambitious) and clear levers: OEE, scrap, kWh/pallet, and labor hours. Calculate payback, TCO, and sensitivity to delays/energy.

Define the CAPEX/OPEX mix and suitable financing (leasing, renting, buy-back) to match cash flow and guarantees. Tie the contract to performance KPIs and SLAs for spares/after-sales service to protect project ROI.

Undersized Curing/Logistics

Raising vibropress capacity is not enough if curing and internal flow do not keep up. Calculate effective vs nominal capacity and expand chambers and buffers before saturating. Review curing profiles, cycle times, and pallet routes.

Digital Without Adoption

Digitizing without discipline creates noise. Clean master data, define capture standards, and train teams. A SCADA/MES is only as good as the habits that feed it.

Ignored Molds and SMED

Minutes lost in mold changes add up to hours of capacity per month. Standardize tooling, heights, and references; prepare pre-checks and post-change dimensional verification. Plan refurbishment and service life by mold.

FAQs: How to Modernize a Concrete Block Plant

Compatibility Between New Equipment and Existing Brands?

Check mechanical and electrical interfaces, control protocols, and safety points. Demand interoperability documentation, FAT/SAT tests, and a risk plan. This avoids integration surprises and long stoppages.

Civil-Works Requirements for Curing Chambers and Robots?

Verify loads, anchors, clear heights, service runs, and ventilation. Demarcate safety zones and evacuation routes. Coordinate foundations and cabling ahead of delivery to avoid schedule overruns.

Financing Models and Equipment Buy-Back?

Evaluate leasing, renting, and buy-back. Compare tax and cash impact, warranties, residual value, and TCO. Request scenarios with and without maintenance included and a breakdown of penalties.

How to Estimate Per-Shift Capacity Before the Project?

Use a quick rule: pallets/shift = (60/cycle time) × effective time × expected OEE − changeover losses. Adjust for curing and internal logistics. Use it to prioritize investments.

How to Set a Spares and After-Sales Service SLA With the Supplier?

Define response and resolution KPIs, a catalog of critical parts, mold lead times, and monthly reporting. Include escalation and reasonable penalties that protect operations without damaging the relationship.

Conclusion and Actionable Checklist

Modernizing a concrete block plant requires data-driven diagnosis, bottleneck-based prioritization, and finely phased execution. Combine technical levers, useful digitization, and energy efficiency in concrete plants with a clear financial plan. Start small, measure results, and scale.

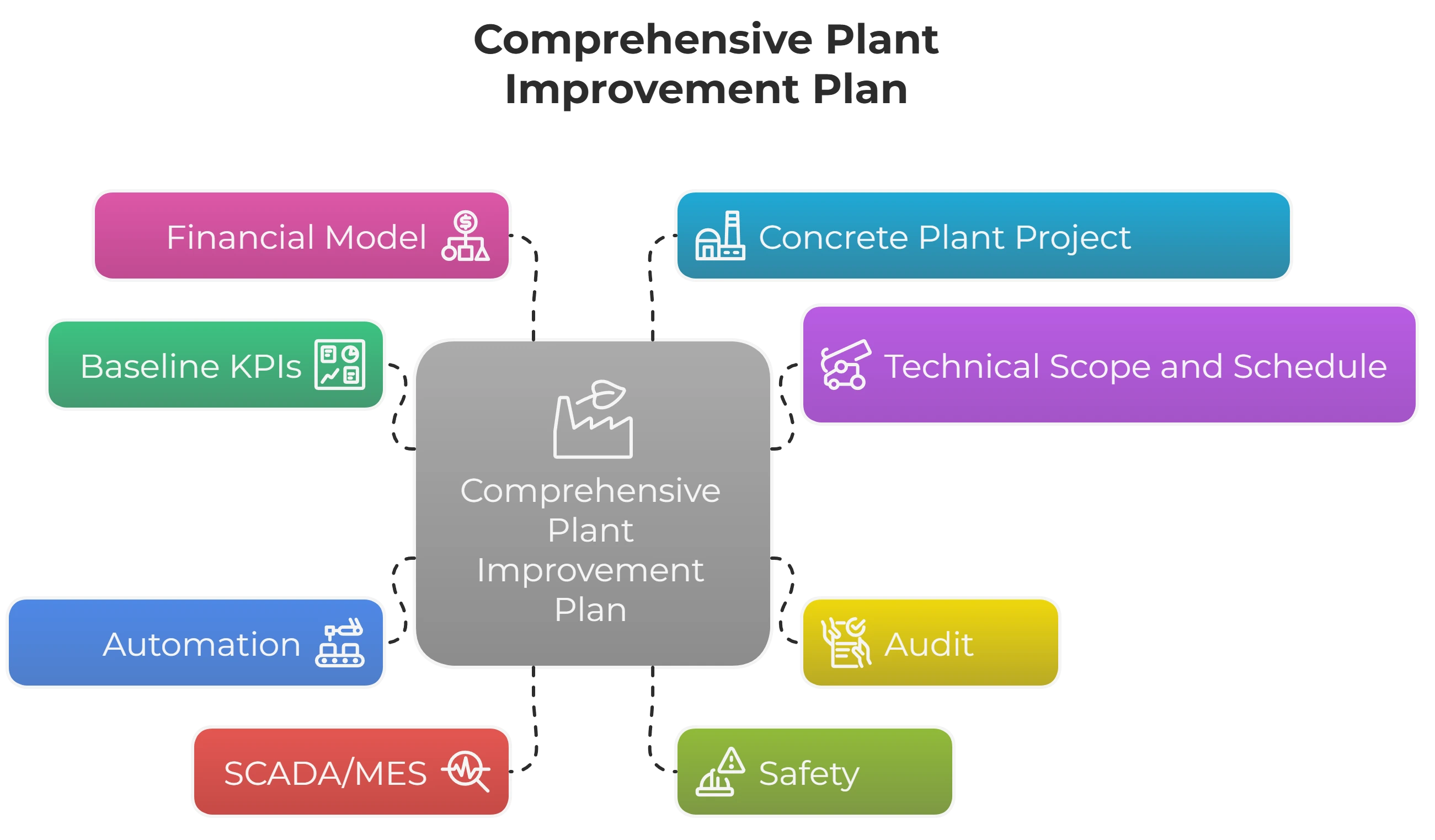

Startup checklist:

• Baseline KPIs: OEE by line, scrap by family, kWh/pallet, water.

• Technical scope and schedule with shutdown windows.

• Audit of mixing, vibropress/molds, curing, and palletizing.

• Modular plan to automate the block plant and ensure compatibility.

• SCADA/MES with role-based dashboards and capture standards.

• Safety package: guarding, LOTO, and role-based training.

• Financial model: scenarios, payback, and leasing/renting/buy-back.

• Concrete plant project: FAT/SAT, critical spares, and after-sales SLA.
